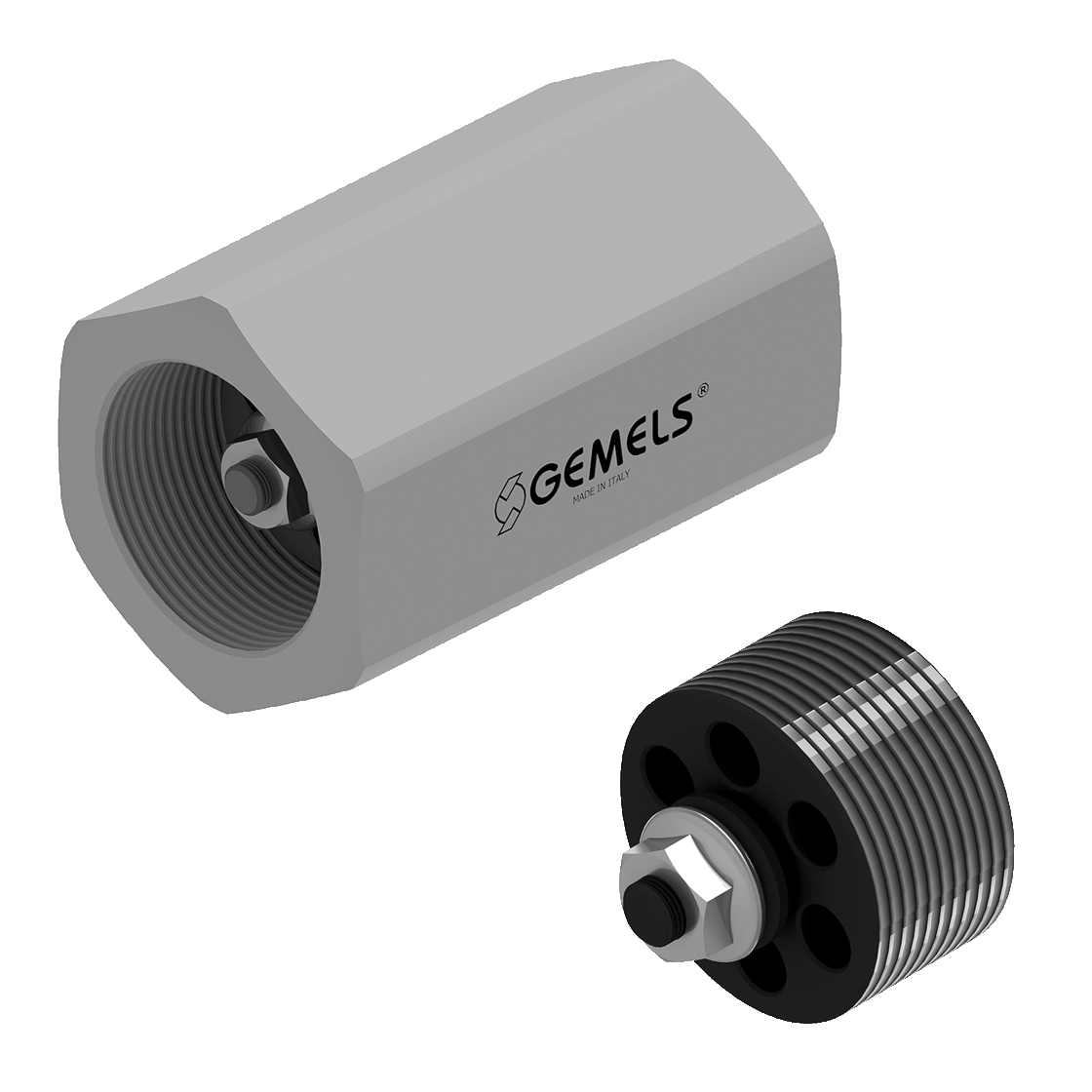

Vannes VB VUBA

VB VUBA

valvole idrauliche per agricultura

Vanne pour engins de levage

Fiche Technique

Acier au carbone
Type COLLECTEUR POUR VANNE PARACHUTE
Dimensions de DN6 à DN25
Filets BSP-NPT-SAE
Pression jusqu'à PN350
Plage de température de -20°C jusqu'à +100°C
pdf ( 1.65 MB )
Détails techniques
hose break valve
VBF - VBM
VB VALVE - COMPONENTS
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G540102A01AAPAA VB G 1/4 8.5 2.4 1/4 9.5 8 5 23 0.0065
G540103A01AAPAA VB G 3/8 11 3.5 3/8 12.5 11 5 23 0.0125
G540104A01AAPAA VB G 1/2 13 4.5 1/2 15 13 6 29 0.0235
G540105A01AAPAA VB G 3/4 16 6 3/4 18.5 18 6 34 0.046
G540106A01AAPAA VB G 1 20 7 1 23 21 7.5 40 0.0945
VBF - Female housing
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
C01AA03583A010Z VBF G 1/4 19 G 1/4 1/4 28 48 0.01
C01AA03584A010Z VBF G 3/8 22 G 3/8 3/8 50 52 0.01
C01AA03585A010Z VBF G 1/2 27 G 1/2 1/2 85 60 0.02
C01AA03586A010Z VBF G 3/4 36 G 3/4 3/4 150 72 0.05
C01AA03587A010Z VBF G 1 46 G 1 1 180 85 0.09
VBM - Male housing
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
C01AA03578A010Z VBM G 1/4 19 G 1/4 1/4 28 48 0.01
C01AA03579A010Z VBM G 3/8 22 G 3/8 3/8 50 58 0.01
C01AA03580A010Z VBM G 1/2 27 G 1/2 1/2 85 65 0.02
C01AA03581A010Z VBM G 3/4 36 G 3/4 3/4 150 78 0.05
C01AA03582A010Z VBM G 1 46 G 1 1 180 85 0.09
VB + VBF Assembled (Female-Female)
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G480202A0100PAA VB G 1/4 24.2 35.2 1/4 35 see diagram
G480203A0100PAA VB G 3/8 26.2 37.1 3/8 35 see diagram
G480204A0100PAA VB G 1/2 30.3 45.2 1/2 35 see diagram
G480205A0100PAA VB G 3/4 38.1 54.2 3/4 35 see diagram
G480206A0100PAA VB G 1 46.2 66.1 1 35 see diagram
VB + VBM Assembled (Male-Female)
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G580302A0100PAA VB G 1/4 24.2 35.2 1/4 35 see diagram
G580303A0100PAA VB G 3/8 26.2 37.1 3/8 35 see diagram
G580304A0100PAA VB G 1/2 30.3 45.2 1/2 35 see diagram
G580305A0100PAA VB G 3/4 38.1 54.2 3/4 35 see diagram
G580306A0100PAA VB G 1 46.2 66.1 1 35 see diagram
