Raccords rapides GV2+VGF

GV2 + VGF

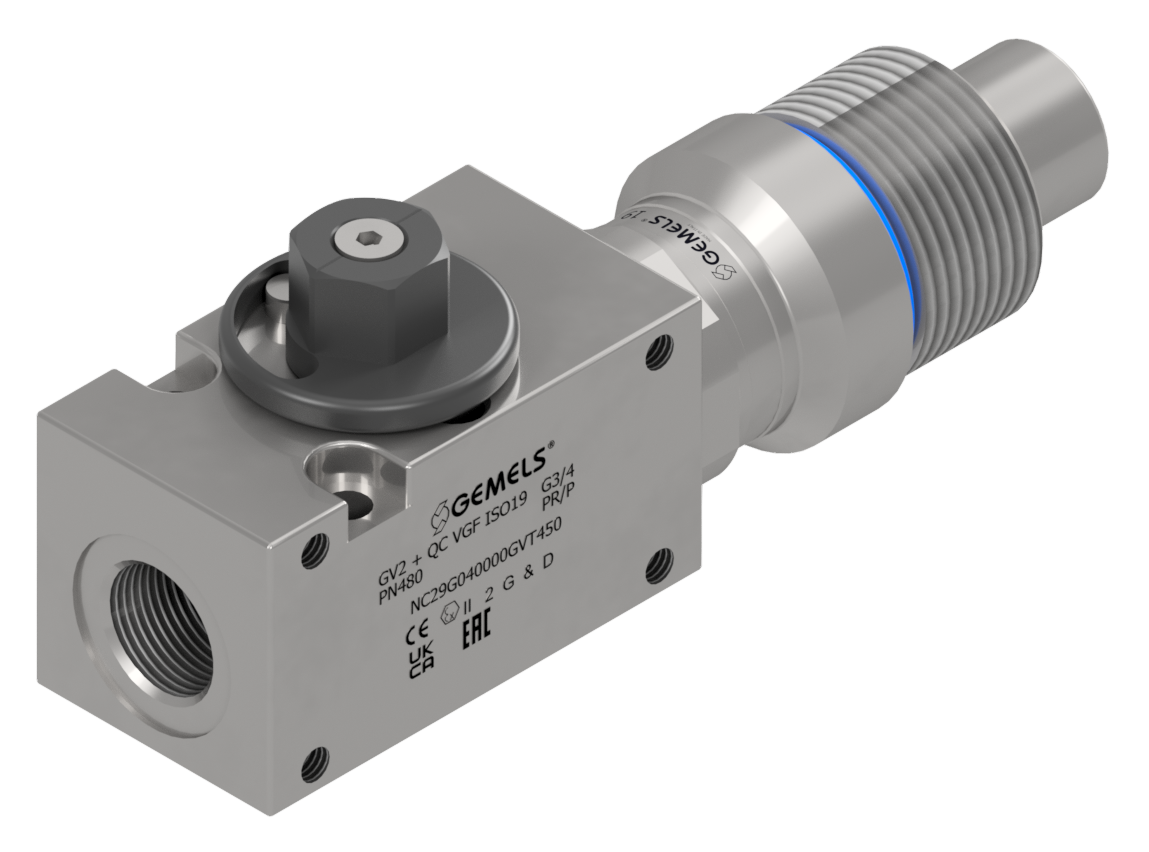

Ball valve with quick coupling integrated
Ball valve with integrated quick coupling

Pour engines de levage, mines et carrières et industrie lourde

Fiche Technique

Acier au carbone
Type GV 2 +QC VGF
Dimensions de DN10 à DN32
Pression jusqu'à PN500
pdf ( 585.88 KB )
Détails techniques
Ball valve with quick coupling integrated
DIN/ISO 228 BSP + QC VGF FLAT FACE SCREW
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GV2 G 3/8 + VGF MALE GV2 + QC VGF 10 50 43 20.4 153 70 19.75 14.1 19 57.1 37 60.9 10 G 3/8 10.5 6.25 6.5 16 9 54 24 6.6 0.919
GV2 G 3/8 + VGF FEMALE GV2 + QC VGF 10 50 43 38.6 20.4 133.5 70 14.1 19 57.1 37 60.9 10 G 3/8 10.5 6.25 6.5 16 9 54 24 6.6 0.919
GV2 G 1/2+ VGF MALE GV2 + QC VGF 13 50 45 21.7 169.5 80 24.5 14.1 19 59.1 45 62.9 13 G 1/2 10.5 6.25 6.5 23 9 57 32 6.6 1.307
GV2 G 1/2+ VGF FEMALE GV2 + QC VGF 13 50 45 46 21.7 148 80 14.1 19 59.1 45 62.9 13 G 1/2 10.5 6.25 6.5 23 9 57 32 6.6 1.307
GV2 G 3/4+ VGF MALE GV2 + QC VGF 20 50 55 23.4 208 101 29.95 18.5 24 73.5 55 78 20 G 3/4 13.5 9 7.5 25.5 14 75.5 40 8 2.424
GV2 G 3/4+ VGF FEMALE GV2 + QC VGF 20 50 55 56 23.4 181.9 101 18.5 24 73.5 55 78 20 G 3/4 13.5 9 7.5 25.5 14 75.5 40 8 2.424
GV2 G 1+ VGF MALE GV2 + QC VGF 25 50 65 29.5 212 105 36 18.5 24 83.5 65 88 25 G 1 13.5 9 8.5 27.5 14 77.5 48 8 3.446
GV2 G 1+ VGF FEMALE GV2 + QC VGF 25 50 65 68.7 29.5 186 105 18.5 24 83.5 65 88 25 G 1 13.5 9 8.5 27.5 14 77.5 48 8 3.446
GV2 G 1 1/4 R+ VGF MALE GV2 + QC VGF 25 50 65 29.5 212 105 36 18.5 24 83.5 65 88 25 G 1 1/4 R 13.5 9 8.5 27.5 14 77.5 48 8 3.265
GV2 G 1 1/4 R+ VGF FEMALE GV2 + QC VGF 25 50 65 68.7 29.5 186 105 18.5 24 83.5 65 88 25 G 1 1/4 R 13.5 9 8.5 27.5 14 77.5 48 8 3.265
GV2 G 1 1/4+ VGF MALE GV2 + QC VGF 32 50 80 33.5 212 105 36 18.5 30 98.5 80 104 32 G 1 1/4 13.5 9 10 24.5 17 80.5 60 8 4.991
GV2 G 1 1/4+VGF FEMALE GV2 + QC VGF 32 50 80 68.7 33.5 186 105 18.5 30 98.5 80 104 32 G 1 1/4 13.5 9 10 24.5 17 80.5 60 8 4.991
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT + QC VGF FLAT FACE SCREW
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GV2 N 3/8 + VGF MALE GV2 + QC VGF 10 50 43 20.4 153 70 19.75 14.1 19 57.1 37 60.9 10 N 3/8 10.5 6.25 6.5 16 9 54 24 6.6 0.919
GV2 N 3/8 + VGF FEMALE GV2 + QC VGF 10 50 43 38.6 20.4 133.5 70 14.1 19 57.1 37 60.9 10 N 3/8 10.5 6.25 6.5 16 9 54 24 6.6 0.919
GV2 N 1/2+ VGF MALE GV2 + QC VGF 13 50 45 21.7 169.5 80 24.5 14.1 19 59.1 45 62.9 13 N 1/2 10.5 6.25 6.5 23 9 57 32 6.6 1.307
GV2 N 1/2+ VGF FEMALE GV2 + QC VGF 13 50 45 46 21.7 148 80 14.1 19 59.1 45 62.9 13 N 1/2 10.5 6.25 6.5 23 9 57 32 6.6 1.307
GV2 N 3/4+ VGF MALE GV2 + QC VGF 20 50 55 23.4 208 101 29.95 18.5 24 73.5 55 78 20 N 3/4 13.5 9 7.5 25.5 14 75.5 40 8 2.424
GV2 N 3/4+ VGF FEMALE GV2 + QC VGF 20 50 55 56 23.4 181.9 101 18.5 24 73.5 55 78 20 N3/4 13.5 9 7.5 25.5 14 75.5 40 8 2.424
GV2 N 1+ VGF MALE GV2 + QC VGF 25 50 65 29.5 212 105 36 18.5 24 83.5 65 88 25 N1 13.5 9 8.5 27.5 14 77.5 48 8 3.446
GV2 N 1+ VGF FEMALE GV2 + QC VGF 25 50 65 68.7 29.5 186 105 18.5 24 83.5 65 88 25 N 1 13.5 9 8.5 27.5 14 77.5 48 8 3.446
GV2 N 1 1/4 R+ VGF MALE GV2 + QC VGF 25 50 65 29.5 212 105 36 18.5 24 83.5 65 88 25 N 1 1/4 R 13.5 9 8.5 27.5 14 77.5 48 8 3.265
GV2 N 1 1/4 R+ VGF FEMALE GV2 + QC VGF 25 50 65 68.7 29.5 186 105 18.5 24 83.5 65 88 25 N 1 1/4 R 13.5 9 8.5 27.5 14 77.5 48 8 3.265
GV2 N 1 1/4+ VGF MALE GV2 + QC VGF 32 50 80 33.5 212 105 36 18.5 30 98.5 80 104 32 N 1 1/4 13.5 9 10 24.5 17 80.5 60 8 4.991
GV2 N 1 1/4+VGF FEMALE GV2 + QC VGF 32 50 80 68.7 33.5 186 105 18.5 30 98.5 80 104 32 N 1 1/4 13.5 9 10 24.5 17 80.5 60 8 4.991
disegno tecnico Gemels
SAE J1926-1 + QC VGF FLAT FACE SCREW
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GV2 SAE6 + VGF MALE GV2 + QC VGF 10 50 43 20.4 153 70 19.75 14.1 19 57.1 37 60.9 10 SAE6 10.5 6.25 6.5 16 9 54 24 6.6 0.919
GV2 SAE6 + VGF FEMALE GV2 + QC VGF 10 50 43 38.6 20.4 133.5 70 14.1 19 57.1 37 60.9 10 SAE6 10.5 6.25 6.5 16 9 54 24 6.6 0.919
GV2 SAE8+ VGF MALE GV2 + QC VGF 13 50 45 21.7 169.5 80 24.5 14.1 19 59.1 45 62.9 13 SAE8 10.5 6.25 6.5 23 9 57 32 6.6 1.307
GV2 SAE8+ VGF FEMALE GV2 + QC VGF 13 50 45 46 21.7 148 80 14.1 19 59.1 45 62.9 13 SAE8 10.5 6.25 6.5 23 9 57 32 6.6 1.307
GV2 SAE12+ VGF MALE GV2 + QC VGF 20 50 55 23.4 208 101 29.95 18.5 24 73.5 55 78 20 SAE12 13.5 9 7.5 25.5 14 75.5 40 8 2.424
GV2 SAE12+ VGF FEMALE GV2 + QC VGF 20 50 55 56 23.4 181.9 101 18.5 24 73.5 55 78 20 SAE12 13.5 9 7.5 25.5 14 75.5 40 8 2.424
GV2 SAE16+ VGF MALE GV2 + QC VGF 25 50 65 29.5 212 105 36 18.5 24 83.5 65 88 25 SAE16 13.5 9 8.5 27.5 14 77.5 48 8 3.446
GV2 SAE16+ VGF FEMALE GV2 + QC VGF 25 50 65 68.7 29.5 186 105 18.5 24 83.5 65 88 25 SAE16 13.5 9 8.5 27.5 14 77.5 48 8 3.446
GV2 SAE20 R+ VGF MALE GV2 + QC VGF 25 50 65 29.5 212 105 36 18.5 24 83.5 65 88 25 SAE20 R 13.5 9 8.5 27.5 14 77.5 48 8 3.265
GV2 SAE20 R+ VGF FEMALE GV2 + QC VGF 25 50 65 68.7 29.5 186 105 18.5 24 83.5 65 88 25 SAE 20 R 13.5 9 8.5 27.5 14 77.5 48 8 3.265
GV2 SAE20+ VGF MALE GV2 + QC VGF 32 50 80 33.5 212 105 36 18.5 30 98.5 80 104 32 SAE20 13.5 9 10 24.5 17 80.5 60 8 4.991
GV2 SAE20+VGF FEMALE GV2 + QC VGF 32 50 80 68.7 33.5 186 105 18.5 30 98.5 80 104 32 SAE20 13.5 9 10 24.5 17 80.5 60 8 4.991
disegno tecnico Gemels
