Vannes GSJ – JOINTS TOURNANTS

GSJ - JOINTS TOURNANTS

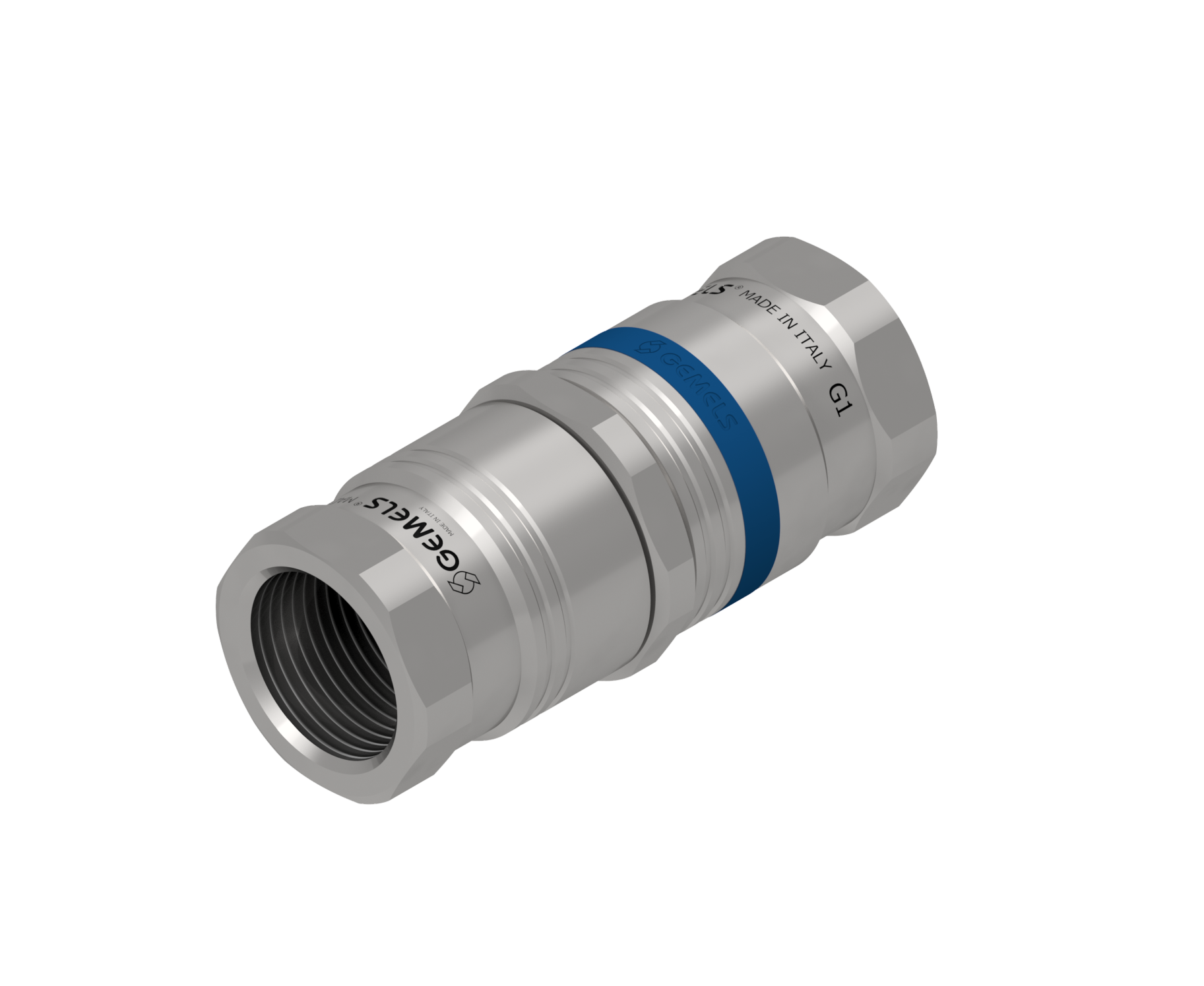

Joint tournant pour le secteur forestier

Fiche Technique

Acier au carbone
Type JOINTS TOURNANTS / in line
Dimensions de DN6 jusqu'à DN32
Filets BSP- NPT-SAE (on request)
Pression jusqu'à PN420
Plage de température de -40°C à +100°C
pdf ( 4.14 MB )
Détails techniques
GSJ - IN LINE ISO 1179-1 BSPP - FEMALE X FEMALE
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NSJ3G010000 GSJ IN LINE G1/4 6 84 24 6 G 1/4 0.39
NSJ3G020000 GSJ IN LINE G3/8 10 85 30 10 G 3/8 0.45
NSJ3G030000 GSJ IN LINE G1/2 13 88.5 32 13 G 1/2 0.51
NSJ3G040000 GSJ IN LINE G3/4 20 100 36 17 G 3/4 0.85
NSJ3G050000 GSJ IN LINE G1 25 108 41 22 G 1 0.9
NSJ3G060000 GSJ IN LINE G1 1/4 32 120 50 26 G 1 1/4 1.24
GSJ - IN LINE ANSI/ASME B1.20.1 NPT - FEMALE X FEMALE
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NSJ3N010000 GSJ IN LINE N1/4 6 85 24 6 N 1/4 0.39
NSJ3N020000 GSJ IN LINE N3/8 10 85 30 10 N 3/8 0.45
NSJ3N030000 GSJ IN LINE N1/2 13 93 32 13 N 1/2 0.51
NSJ3N040000 GSJ IN LINE N3/4 20 97 36 17 N 3/4 0.85
NSJ3N050000 GSJ IN LINE N1 25 104 41 22 N 1 0.9
NSJ3N060000 GSJ IN LINE N1 1/4 32 112 50 26 N 1 1/4 1.24
GSJ- IN LINE SAE J1926-1 - FEMALE X FEMALE
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NSJ3S010000 GSJ IN LINE SAE4 6 84 24 6 SAE4 0.39
NSJ3S020000 GSJ IN LINE SAE6 10 85 30 10 SAE6 0.45
NSJ3S030000 GSJ IN LINE SAE8 13 88.5 32 13 SAE8 0.51
NSJ3S040000 GSJ IN LINE SAE12 20 105 36 17 SAE12 0.85
NSJ3S050000 GSJ IN LINE SAE16 25 106 41 22 SAE16 0.9
NSJ3S060000 GSJ IN LINE SAE20 32 120 50 26 SAE20 1.24
GSJ - IN LINE ISO 8434-6 and ISO 1179-1 BSPP - MALE X FEMALE
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NSJ3C010000 GSJ IN LINE G1/4 6 86.5 24 6 G 1/4 0.39
NSJ3C020000 GSJ IN LINE G3/8 10 88 30 10 G 3/8 0.45
NSJ3C030000 GSJ IN LINE G1/2 13 95.5 32 13 G 1/2 0.51
NSJ3C040000 GSJ IN LINE G3/4 20 102 36 17 G 3/4 0.85
NSJ3C050000 GSJ IN LINE G1 25 109.5 41 22 G 1 0.9
NSJ3C060000 GSJ IN LINE G1 1/4 32 120 50 26 G 1 1/4 1.24
GSJ - IN LINE ISO 8434-6 - MALE X MALE
Code de l'article Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flux max l/min Flux min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Ratio de pilotage Pressure cracking MPa Pression max MPa Pression max pic MPa Pression max. rotative MPa Pression max. statique MPa Pression max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Plage de réglage MPa Établir une norme MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Poids kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NSJ3E010000 GSJ IN LINE G1/4 6 90 24 6 G 1/4 0.39
NSJ3E020000 GSJ IN LINE G3/8 10 91 30 10 G 3/8 0.45
NSJ3E030000 GSJ IN LINE G1/2 13 100.5 32 13 G 1/2 0.51
NSJ3E040000 GSJ IN LINE G3/4 20 104 m 17 G 3/4 0.85
NSJ3E050000 GSJ IN LINE G1 25 112 41 22 G 1 0.9
NSJ3E060000 GSJ IN LINE G1 1/4 32 120 50 26 G 1 1/4 1.24
Télécharger : Catalogues et dessins

GSJ

DATASHEET
pdf ( 4.14 MB )
